Uneven heating in underfloor heating systems is a common problem faced by many homeowners and installers. When the system is not balanced properly, some areas of the floor may be too hot, while others remain cold. This can lead to discomfort, higher energy bills, and inefficiency. The solution? Properly balancing your underfloor heating manifold, ensuring equal distribution of heat to all areas. In this article, we’ll walk you through the steps to fix uneven heating, understand its causes, and get your underfloor heating system running efficiently again.

Balancing an underfloor heating manifold is crucial to ensure uniform warmth across your home. By adjusting flow rates and checking key parameters, you can fix uneven heating, prevent discomfort, and boost system efficiency. This guide will walk you through simple steps for optimal performance.

Understanding how to balance your underfloor heating manifold can significantly improve the comfort and efficiency of your heating system. If you’ve been experiencing uneven heat or cold spots, it’s time to take action. Let’s dive into the details on how you can fix the issue.

How Do You Fix Uneven Heating?

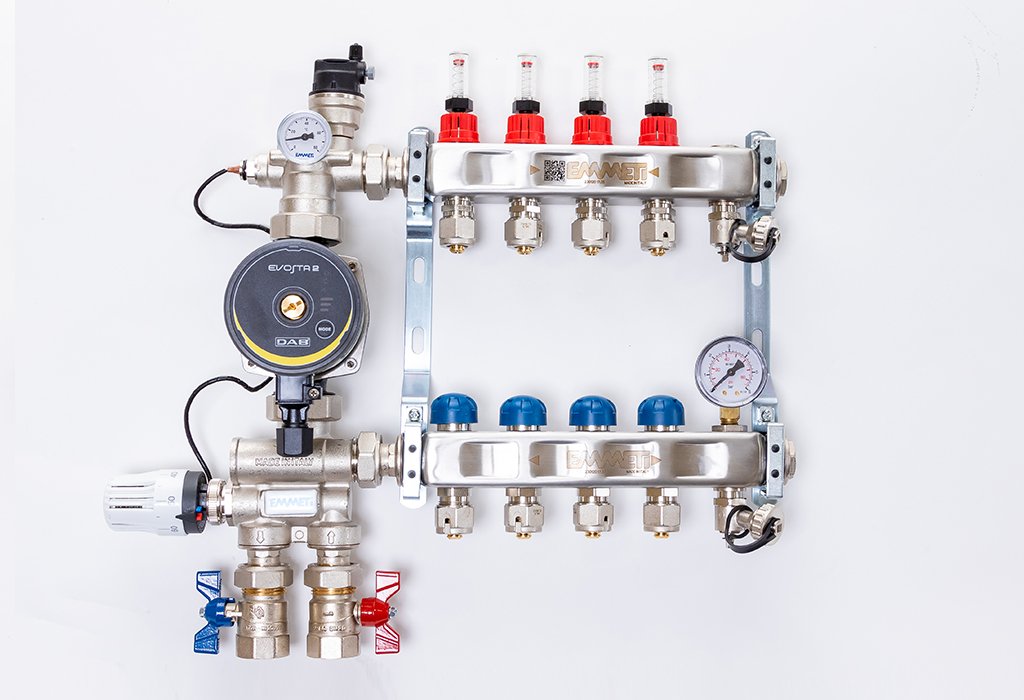

Uneven heating in an underfloor system can often be traced back to an improperly balanced manifold. The manifold is the heart of your underfloor heating system, distributing hot water to the various loops in the floor. If the flow of hot water is not equal to all parts of the floor, some areas will get too much heat, while others may not get any.

To fix this, you should start by checking the flow rates to each circuit using the flow meters on your manifold. Adjust the flow to ensure that each loop gets the right amount of water. If you notice a temperature imbalance between different zones, consider balancing the manifold by adjusting the flow valves until the heat is evenly distributed across all loops. Additionally, ensure that the underfloor heating water temperature is set correctly, typically between 40°C to 50°C (104°F to 122°F), depending on the type of flooring and insulation.

Another cause of uneven heating could be air trapped in the system. Bleed the system to release any trapped air, which can obstruct the flow of water. By following these steps, you’ll restore even heating and maintain a comfortable temperature throughout your space.

What Can Uneven Heating Cause?

Uneven heating is more than just an inconvenience; it can have a range of negative consequences. If certain areas of the floor are too hot while others are cold, the system will not operate efficiently, leading to higher energy consumption. Overheating in some sections can also result in damage to flooring materials, especially wooden or laminate floors that are sensitive to temperature changes.

In addition, when an underfloor heating system isn’t balanced, there is an increased likelihood of pressure buildup in the system. This can lead to pump failure or leaks in the pipes, causing costly repairs. Furthermore, an unbalanced system can cause discomfort for occupants, as some rooms may feel too warm while others remain chilly. This can also impact the performance of your thermostat, leading to a mismatch between the desired and actual temperature of the space.

How to Check If an Underfloor Heating Manifold is Working?

Checking the performance of your underfloor heating manifold is an essential step in identifying and fixing uneven heating. The first thing to do is inspect the flow meters. Each loop should be receiving an equal amount of hot water. If the flow meters show discrepancies, it indicates that the manifold is not distributing heat properly.

Next, check the system’s pressure. If the pressure is too low or too high, it can cause flow imbalances. Ensure that the pressure is within the manufacturer’s recommended range. You can also check the temperature at different points in the system using a temperature gun or thermostat. If certain areas are much cooler than others, it may indicate that there is an issue with flow or air in the system.

Finally, check for any visible leaks or obstructions in the manifold and the pipes. Leaks or clogs can disrupt the flow of water, leading to uneven heating. Regularly monitoring the manifold and maintaining it well will help ensure long-term efficiency and comfort.

Why is My Underfloor Heating Patchy?

A patchy underfloor heating system can be frustrating and uncomfortable. If you notice that some areas of the floor are warm while others are cold, it’s often a sign of an issue with the water flow or heat distribution. One common reason for patchy heating is air in the system. Air pockets can block the flow of water, preventing certain loops from heating up properly.

Another cause could be improper installation or poor pipe layout. If the pipes are too far apart or poorly configured, some areas may not receive adequate heat. You should also check the underfloor heating flow temperature. If it’s too low, some areas may not heat effectively. Lastly, thermostat settings or faulty thermostats could contribute to patchy heating.

To resolve patchy heating, start by bleeding the system to remove any trapped air. Then, check the pipe layout and make sure it’s in line with the manufacturer’s guidelines. If necessary, adjust the underfloor heating control settings or replace any malfunctioning components.

How Do You Adjust a Floor Heat Manifold?

Adjusting the flow in your underfloor heating manifold is key to fixing uneven heating. Most manifolds come with flow control valves that allow you to adjust the water flow to each circuit. Begin by checking the flow meter readings for each loop to identify which areas need adjustment.

If a loop is not receiving enough water, open the valve to increase the flow. Conversely, if a loop is getting too much water, close the valve slightly. Make small adjustments and monitor the temperature changes in different zones. It may take several rounds of fine-tuning to achieve a perfectly balanced system.

Don’t forget to check the overall system pressure as you make adjustments. A sudden change in pressure can affect the performance of the manifold, so ensure that the pressure remains within the manufacturer’s recommended range. After making adjustments, give the system time to stabilize and test the floor temperature to confirm that it’s heating evenly.

In Summary

Balancing an underfloor heating manifold is crucial for efficient and uniform heating throughout your home. By checking the flow rates, adjusting the valves, and maintaining the system, you can ensure that your underfloor heating system operates smoothly and comfortably. Regular maintenance and timely adjustments will prevent uneven heating and help you avoid costly repairs in the future.
